QH304

QH304

Introduce:
1.Super strong pneumatic shaped solid tire with special compounds improving load capacity and resistance to punchure, extend service life .
2.Special colloidal anti-static formula to do the effective elimination of static accumulation, improving the safety of the workplace and personnel.

Category: Industrial Tires

Description

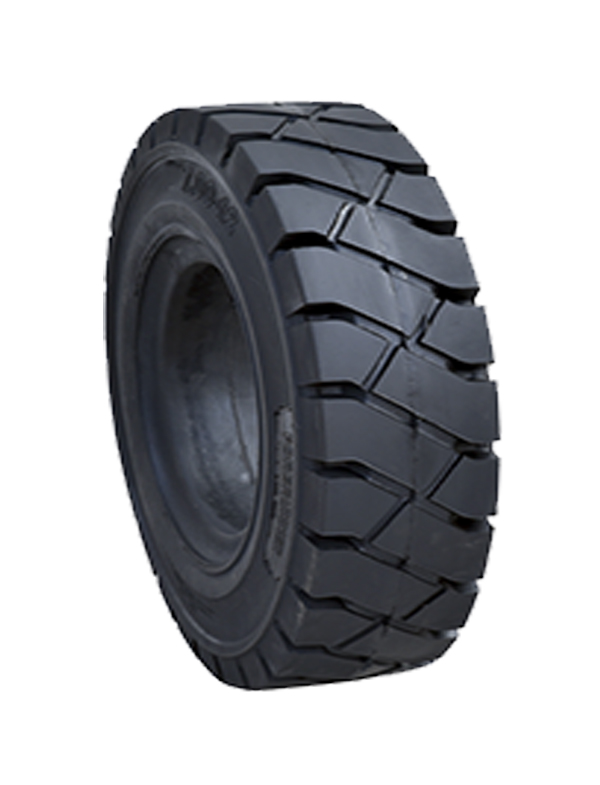

Pneumatics Shaped Solid Tire

TIRE SPECIFICATIONS:

SIZE	OVERALL DIAMETER MM	SECTION WIDTH MM	STANDARD RIM	MAX LOAD KG
				COUNTERBALANCED LIFT TRUCK				OTHER INDUSTRIAL 16KM/H
				10KM/H		25KM/H
				LOAD	ROTATION	LOAD	ROTATION
5.00-8	469	126	3.00	1,210	970	1,095	820	840
6.00-9	545	140	4.00	1,920	1,535	1,730	1,295	1,325
6.50-10	597	157	5.00	2,640	2,110	2,370	1,780	1,820
7.00-9	578	170	5.00	2,730	2,015	2,530	1,790	1,940
7.00-12	683	168	5.00	3,015	2,410	2,710	2,035	2,075
7.00-15	759	178	5.50	3,590	2,870	3,225	2,420	2,475
8.25-12	735	206	5.00	3,325	2,660	2,995	2,245	2,295
8.25-15	847	205	6.50	4,940	3,950	4,440	3,330	3,405
16×6-8	418	156	4.33	1,500	1,200	1,345	1,010	1,035
18×7-8	457	165	4.33	2,350	1,880	2,110	1,585	1,620
21×8-9	535	189	6.00	2,810	2,250	2,530	1,895	1,940
23×9-10	200	595	6.50	3,420	2,735	3,076	2,305	2,355
27×10-12	683	236	8.00	4,465	3,570	4,020	3,015	3,080
28×9-15	700	230	7.00	4,090	3,270	3,675	2,755	2,820
250-15	734	226	7.00	4,675	3,740	4,250	3,155	3,225
