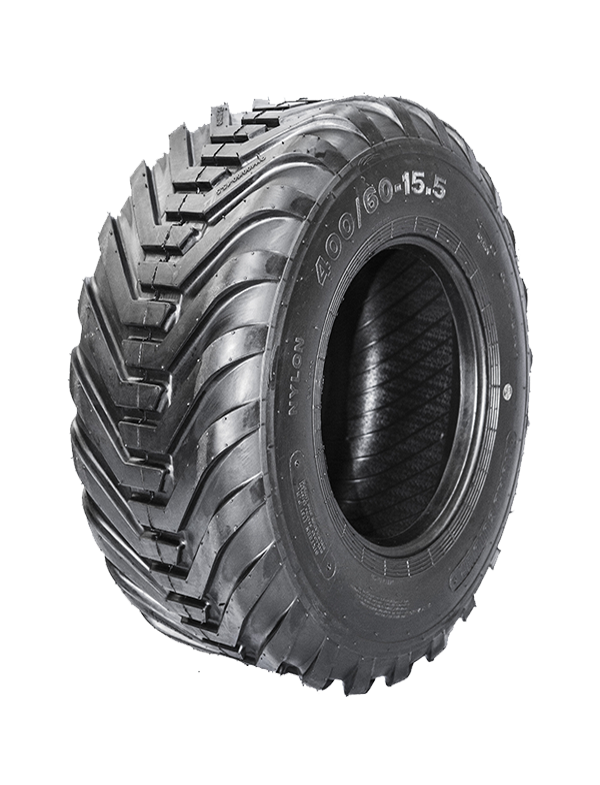

I-3 QH643

Introduce:
1.Larger contact area with soil More robust bead differentiated planes of stiffness with different slopes and propeller bars.
2.Better distribution of load that provides less compaction of the soil reinforced bead to withstand high loads.
3.Great self-cleaning, promoting the elimination of waste during work, providing greater trativity.
4.Greater resistance to impacts, cuts and lacerations.

Category:
Floatation Tires I-3

TIRE SPECIFICATIONS:

Size PLY TT/TL Overall Diameter (mm) Section Width (mm) Standard Rim Cold Inflation Pressure (KPA) Max Load (kg)
10.0/75-15.3 16PR TL 760 264 9 500 1800
400/60-15.5 14PR TL 874 400 13 360 2,900
500/50-15.5 14PR TL 874 500 17 390 3,150
500/50-17 18PR TL 950 500 16 480 4,500
400/55-22.5 16PR TL 1,020 405 13.00 400 3,550
400/60-22.5 16PR TL 1,070 400 13.00 350 4,000
500/45-22.5 16PR TL 1,045 500 16.00 360 3,750
500/60-22.5 16PR TL 1,170 500 16.00 320 4,875
550/45-22.5 16PR TL 1,070 550 16.00 280 4,375
550/60-22.5 16PR TL 1,238 550 16 280 5,450
600/50-22.5 16PR TL 1,170 610 20 260 5,150
600/55-22.5 16PR TL 1,238 600 16 280 5,600
700/40-22.5 16PR TL 1,170 700 24.00 220 5,300
700/50-22.5 16PR TL 1,270 700 24.00 240 6,700
600/55-26.5 16PR TL 1,354 600 20.00 260 6,000
700/50-26.5 16PR TL 1,354 700 24.00 240 6,700
800/45-26.5 16PR TL 1,354 800 28.00 220 7,300
650/65-30.5 16PR TL 1,650 650 20.00 220 7,750
750/60-30.5 16PR TL 1,650 750 24.00 220 8,500
850/50-30.5 16PR TL 1,650 850 28.00 220 9,500
